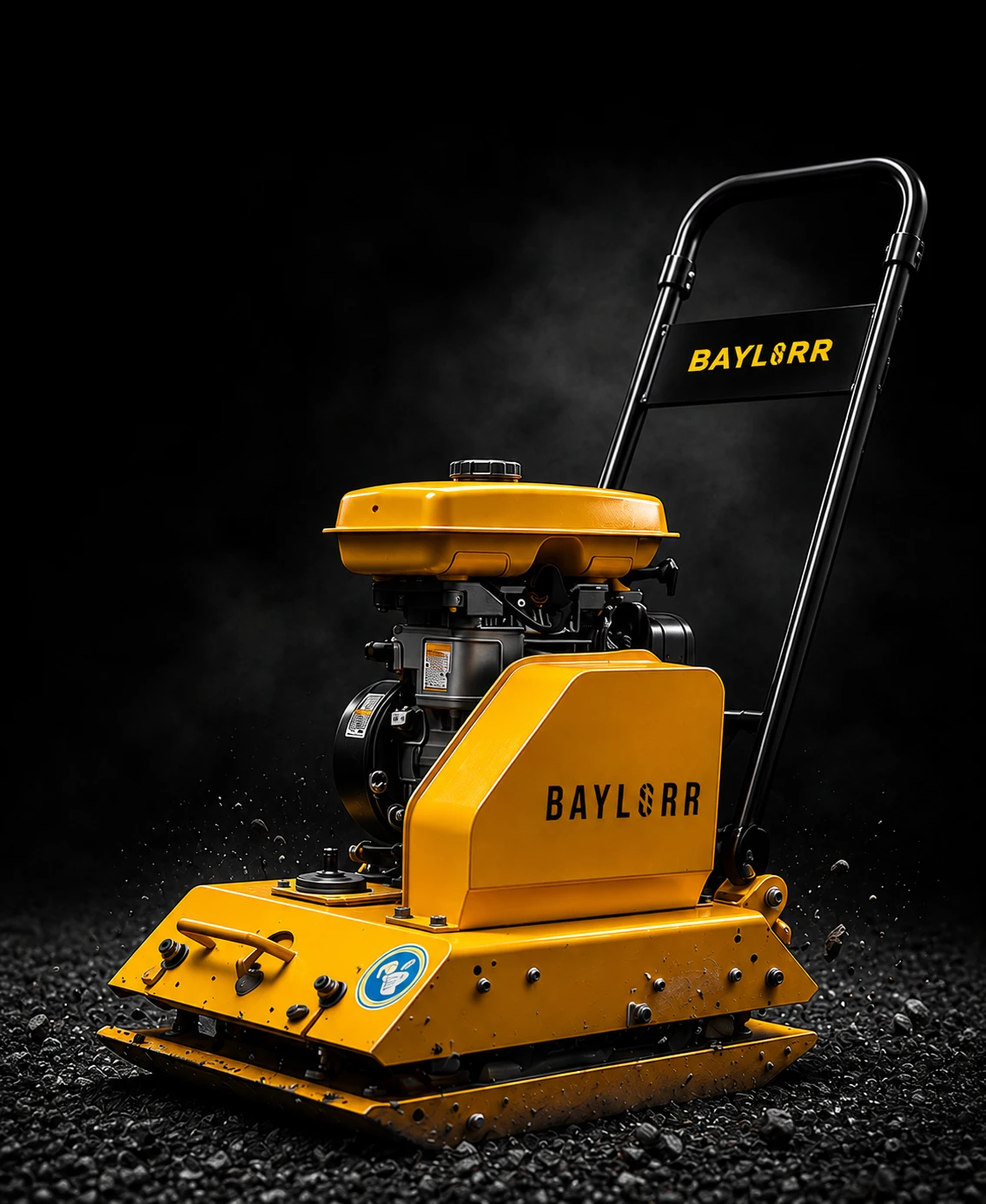

Plate Compactor UAE — Baylorr BAY-PC90C 90 kg
AMACO's flagship 90 kg plate compactor — built for UAE construction work and refined through three years of real site feedback. Trench backfill, paver bases, subgrade prep, asphalt patching. Robin (Subaru) or Honda petrol — your choice.
- 1-Year Warranty
- Workshop Repair in Ajman
- Genuine Baylorr Parts
BAY-PC90C At a Glance
Structured spec sheet for fast scanning. Figures are typical for the 90 kg forward-travel class and match the Baylorr BAY-PC90C at time of writing. Actual units may vary by engine choice and production batch — request the exact spec sheet with your quote.
- Model
- BAY-PC90C
- Brand
- Baylorr
- Category
- Forward-travel plate compactor
- Weight
- 90 kg
- Plate size
- ~ 530 × 400 mm
- Compaction force
- ~ 15 kN
- Engine options
- Robin (Subaru) petrol / Honda petrol
- Engine output
- ~ 5.5 hp
- Compaction depth
- 20–30 cm per pass (granular soils)
- Fuel tank
- ~ 3.6 L — typical run time 6–8 hours
- Travel speed
- ~ 20–25 m/min forward
- Vibration frequency
- ~ 5,500 rpm
- Origin
- Manufactured in China to Baylorr spec, QC'd in Ajman
- Warranty
- 1 year on manufacturing defects
- Delivery
- 48 hours UAE-wide
What's Included in the Box
- Baylorr BAY-PC90C plate compactor unit
- Robin (Subaru) or Honda petrol engine (factory-fitted per your order)
- Fold-down handle — ships secured, unfolds for operation
- Wheel kit (clip-on) for easy transport to and from the job
- Operator manual in English
- Engine tools pack
- Warranty card — one year manufacturing defects, activated on delivery
- Delivery to site anywhere in the UAE
What the BAY-PC90C Is Used For
The 90 kg weight class sits in the sweet spot for UAE contractor work — heavy enough for granular-soil compaction at useful depth, light enough for one person to move around a site. Where our customers actually use it:
Trench Backfill After Utilities
Water, sewage, and electrical trenches refilled with sand and gravel need compacting in 15–20 cm layers. The BAY-PC90C is ideal — narrow enough to work along the trench line, heavy enough to hit proper density in two to three passes.
Paver and Interlock Base Prep
Before laying interlocking pavers, the sand-and-gravel base needs to be rock-solid. The BAY-PC90C handles this on driveways, walkways, patios, and commercial paver work across Dubai, Sharjah, and Abu Dhabi.
Subgrade Compaction
Road subgrade, parking lot base, building pad prep — wherever a stable, level surface is needed before asphalt or concrete pour, the plate compactor does the subgrade phase.
Asphalt Patching
Cold asphalt repair on driveways, potholes, and utility cut patches. The BAY-PC90C plate works directly on patched asphalt to embed and seat the material.
General Site Levelling
Residential builds, small commercial sites, landscaping jobs — any situation where a loose granular surface needs to be turned into a firm, level working base.
Why the Baylorr BAY-PC90C
Three Years of Product Iteration
This isn't a rebadged import. The BAY-PC90C you receive today has been through multiple revisions since 2022. The handle bracket is our version 3 — reinforced after early units came back. The engine mount is designed for 45°C summer operation. The fuel tank position changed after we saw spillage on slopes. Built around problems UAE operators actually encountered.
Engine Options That Match Local Support
We ship with Robin (Subaru) or Honda petrol engines — both well-supported globally and with parts available across the UAE. No waiting for a proprietary engine part to be imported. If an issue comes up six months in, we can source spares fast.
Workshop Backup at Walking Distance
Every compactor sold has a workshop behind it — ours in Ajman. When yours eventually needs service (they all do), it doesn't need to be shipped back to the manufacturer. Drop it at our Ajman workshop, or arrange collection from Dubai. Two-day turnaround on most repairs.
plate compactor repair UAE →Real Warranty, Actually Honoured
One year on manufacturing defects, handled directly at our Ajman facility. No manufacturer RMA forms, no waiting-for-overseas-approval delays. If the issue is covered, we fix it.
Engine Options — Robin vs Honda
Both engines are well-matched to the BAY-PC90C. The specs below help you decide which makes more sense for your use. Both ship from the same Ajman warehouse, same 48-hour delivery window — tell us your preference when you order.
Robin (Subaru) EX17
- Well-known in UAE construction — widely supported
- Competitive on upfront price
- Good cold-start performance
- Reliable on extended daily use
Honda GX160
- Gold standard petrol engine in construction worldwide
- Slightly higher upfront cost but longer service intervals
- Best parts availability anywhere in the Middle East
- Typically preferred by contractors running fleet operations
Plate Compactor or Tamping Rammer?
The short version: plate compactor for granular, open, medium-depth work; tamping rammer for cohesive, narrow, deep work.
A common pattern with UAE residential contractors — buy the BAY-PC90C first, rent or subcontract a rammer for the ~15% of jobs that need it.
Other Compaction Equipment in Our Range
The BAY-PC90C is our 90 kg flagship, but we stock the broader compaction line too — heavier plate compactors, tamping rammers, and roller options. Same warranty, same Ajman workshop behind every unit.
See the full compaction range → compaction equipment UAE
Delivery, Warranty & Service
Delivery
- 48-hour UAE-wide delivery
- Next-day delivery for Dubai, Sharjah, and Abu Dhabi orders before noon
- Delivery charges depend on location — contact us for current policy
- International shipping not currently offered — UAE only
Warranty
- One year on manufacturing defects from date of delivery
- Covered: engine issues, plate cracks, bearing failure, handle mount defects, frame welds
- Not covered: wear-and-tear consumables (belts, filters), accidental damage, improper operation
- Warranty claims handled at our Ajman workshop — drop-off or collection
After-Sales Support
- In-shop repair at Ajman workshop — 2-day typical turnaround
- On-site repair available across the UAE
- Genuine Baylorr parts stocked in Ajman
- Robin/Honda engine parts via standard UAE supply chains

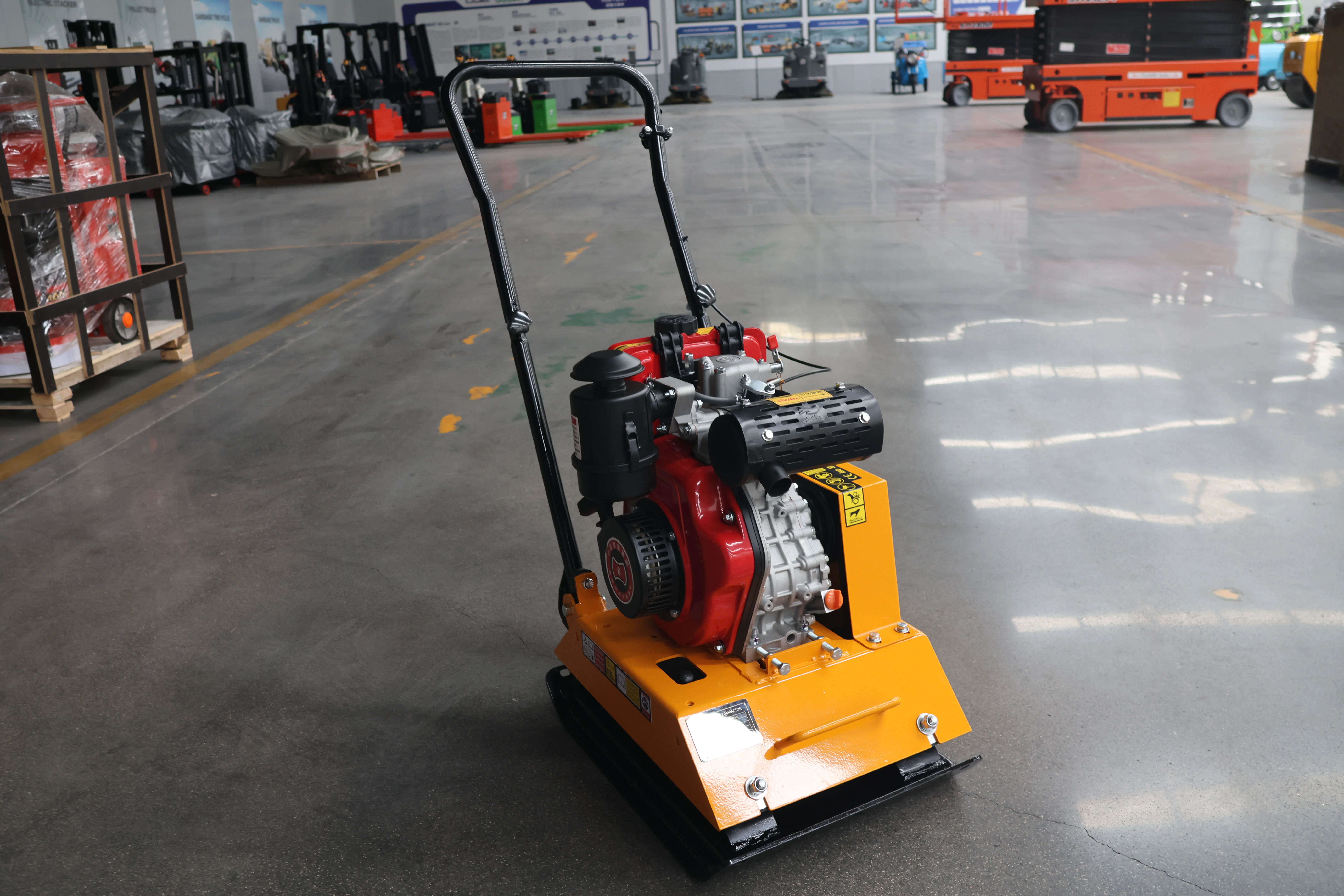

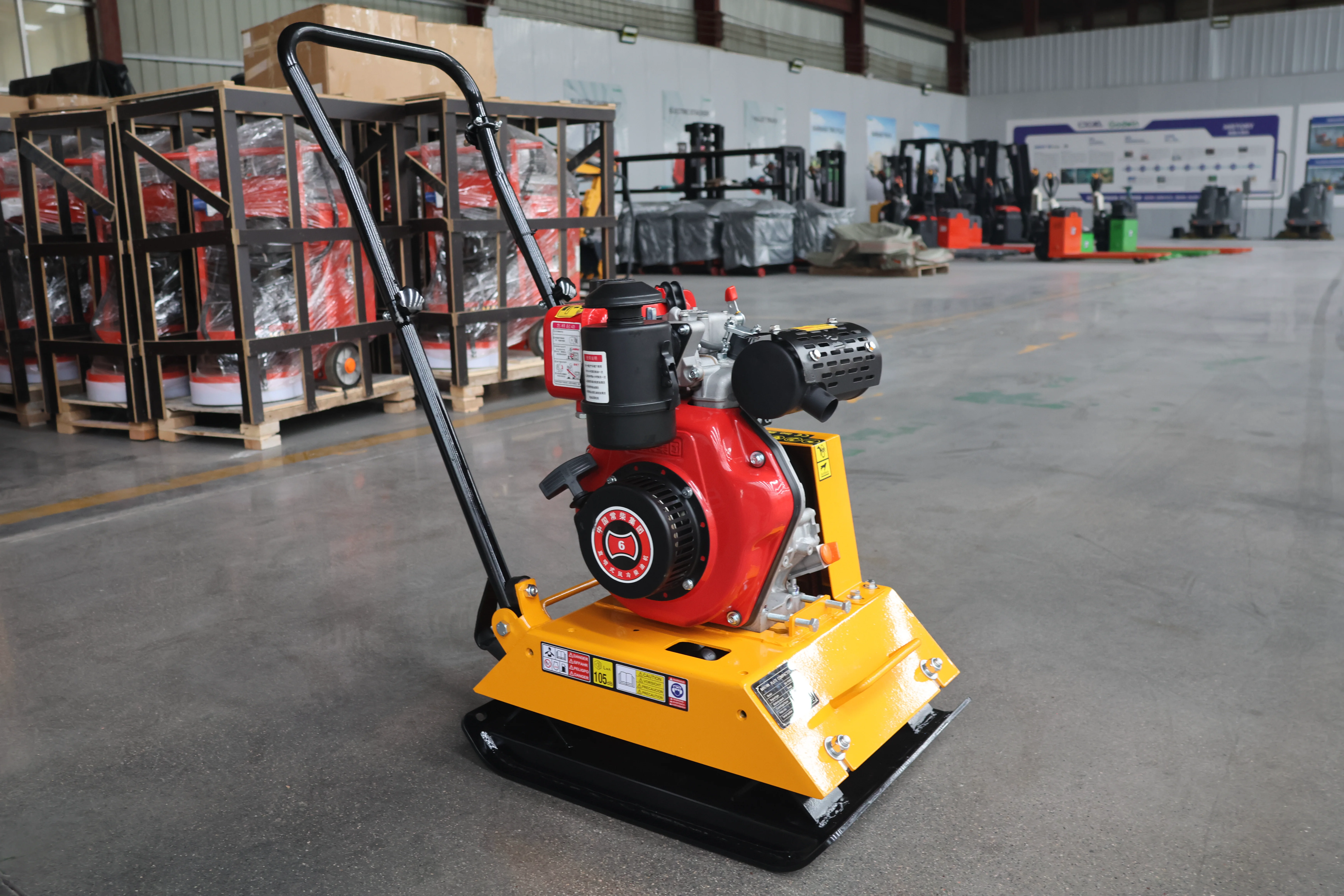

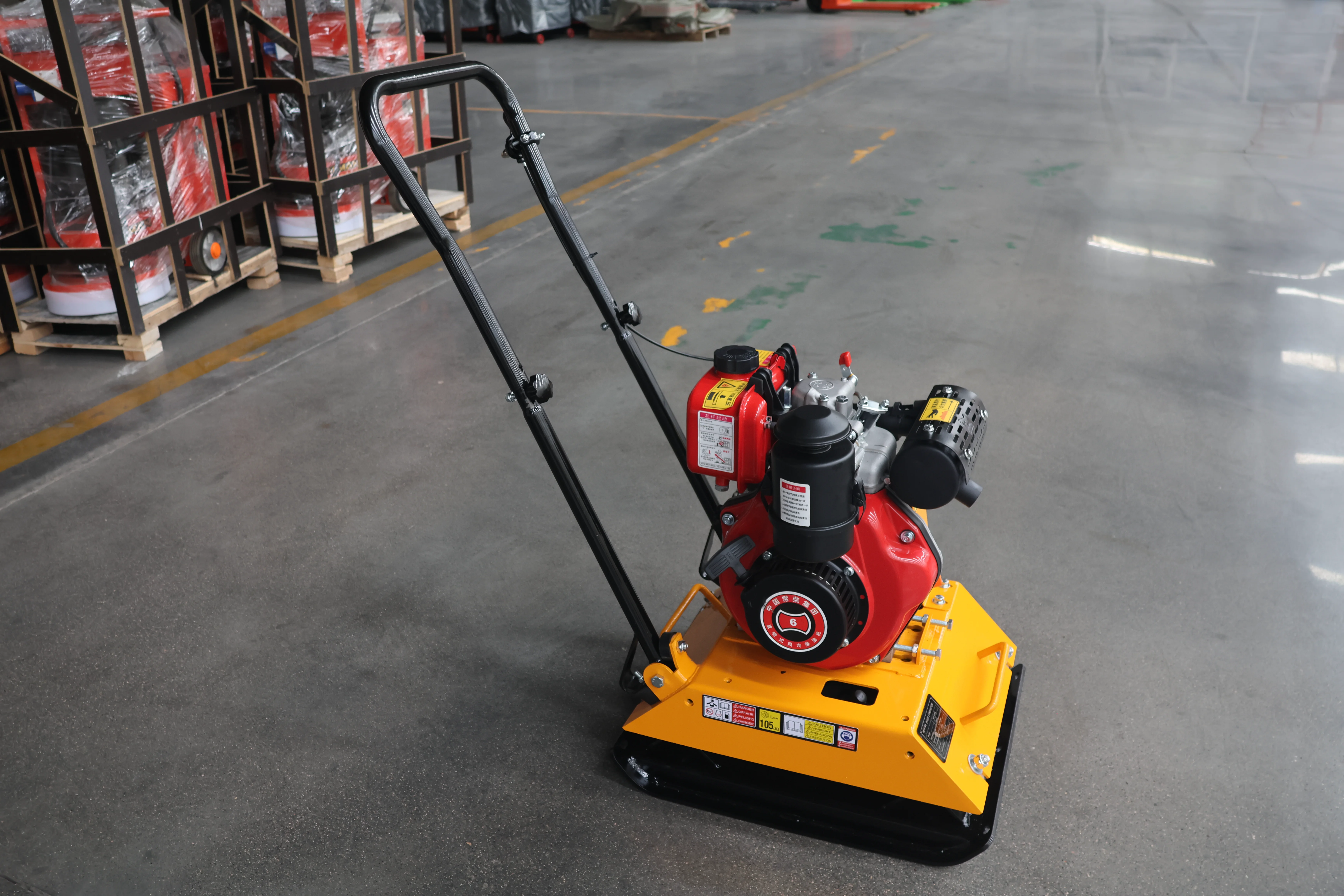

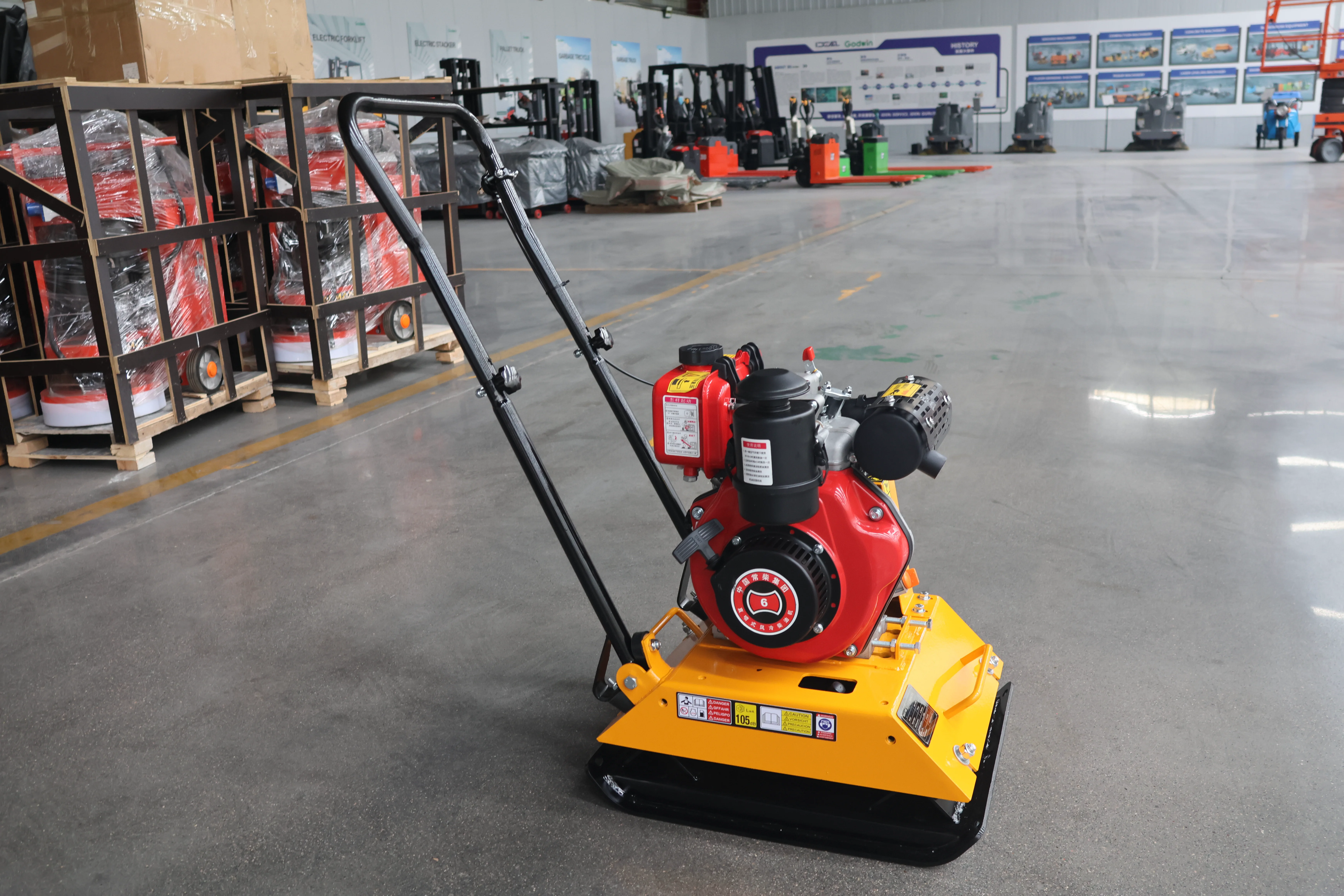

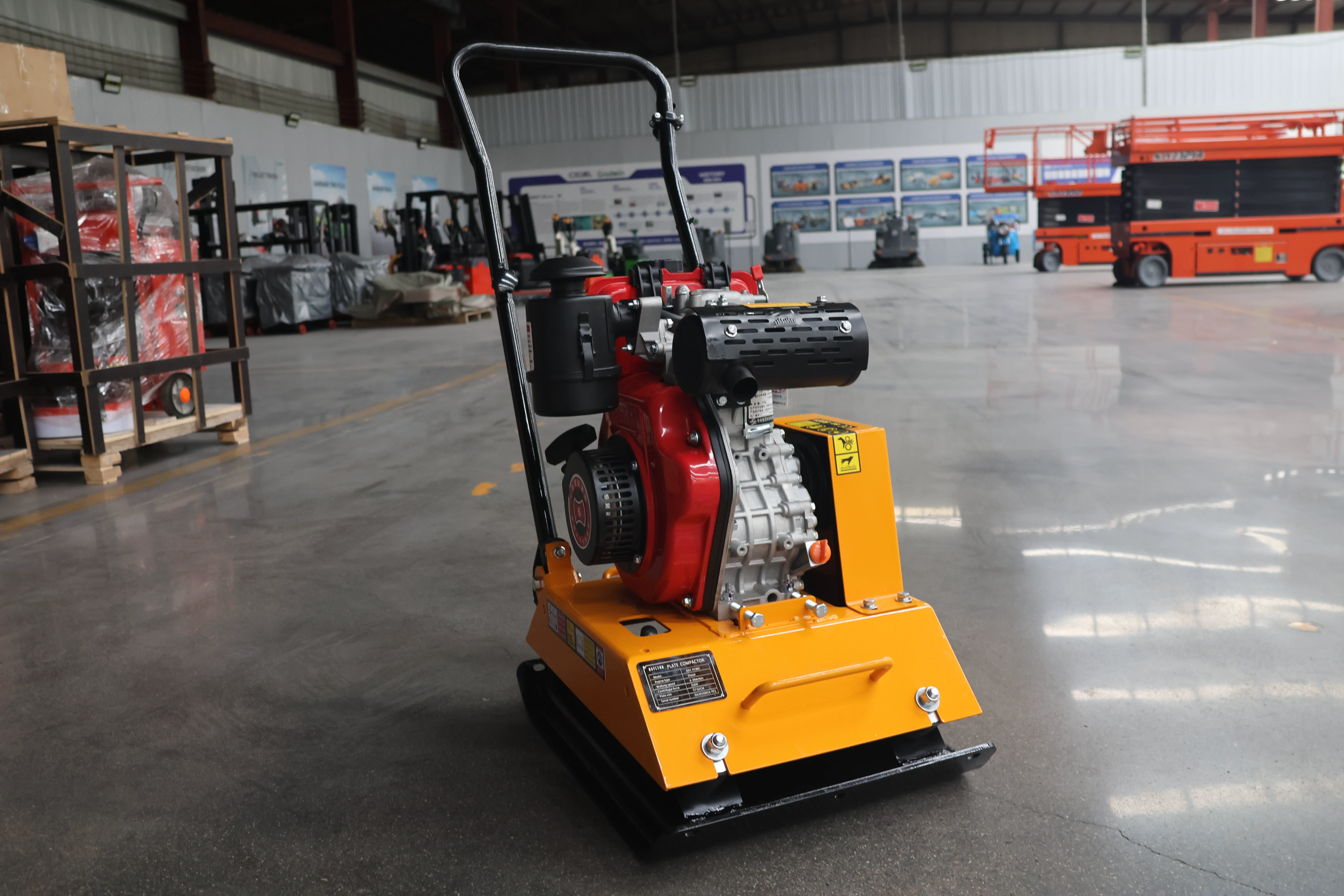

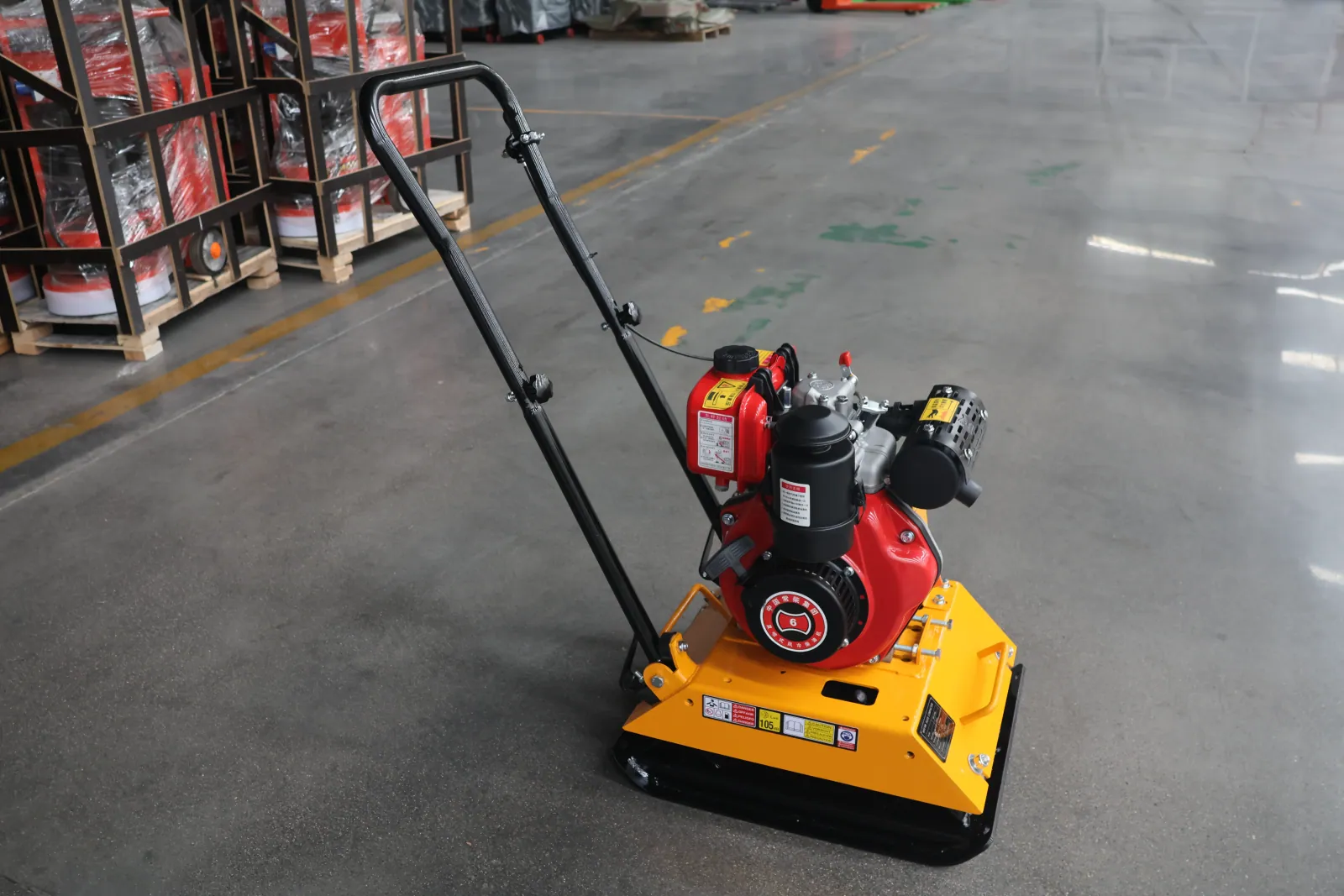

BAY-PC90C Photo Gallery
