Rebar bending machines are among the most used pieces of equipment on any reinforced concrete construction site in the UAE. From villa slabs in Mirdif to pile caps on Dubai Creek Harbour, every structural element with steel reinforcement requires precisely bent bars — and the machine you choose to bend them directly impacts your site's productivity, power setup, and equipment budget.
The most common question AMACO gets from UAE contractors: "Should I go single-phase or three-phase?" The answer depends on more than just what power outlets are on your site. This guide compares both types using real product specifications, UAE site realities, and the pricing logic that often surprises buyers.
What Does a Rebar Bending Machine Actually Do?
A rebar bending machine — also called a steel bar bender or rebar former — uses a rotating bending disc driven by an electric motor to shape steel reinforcement bars into the angles and geometries required by structural drawings. Outputs include stirrups, links, hooks, U-bars, L-bars, and custom-angle shapes for columns, beams, slabs, and pile cages.
In the UAE, rebar bending is either performed on-site by the main or subcontractor's team, or at an off-site fabrication yard before bars are delivered cut and bent. The choice between single-phase and three-phase equipment affects which of these scenarios is viable for your operation.

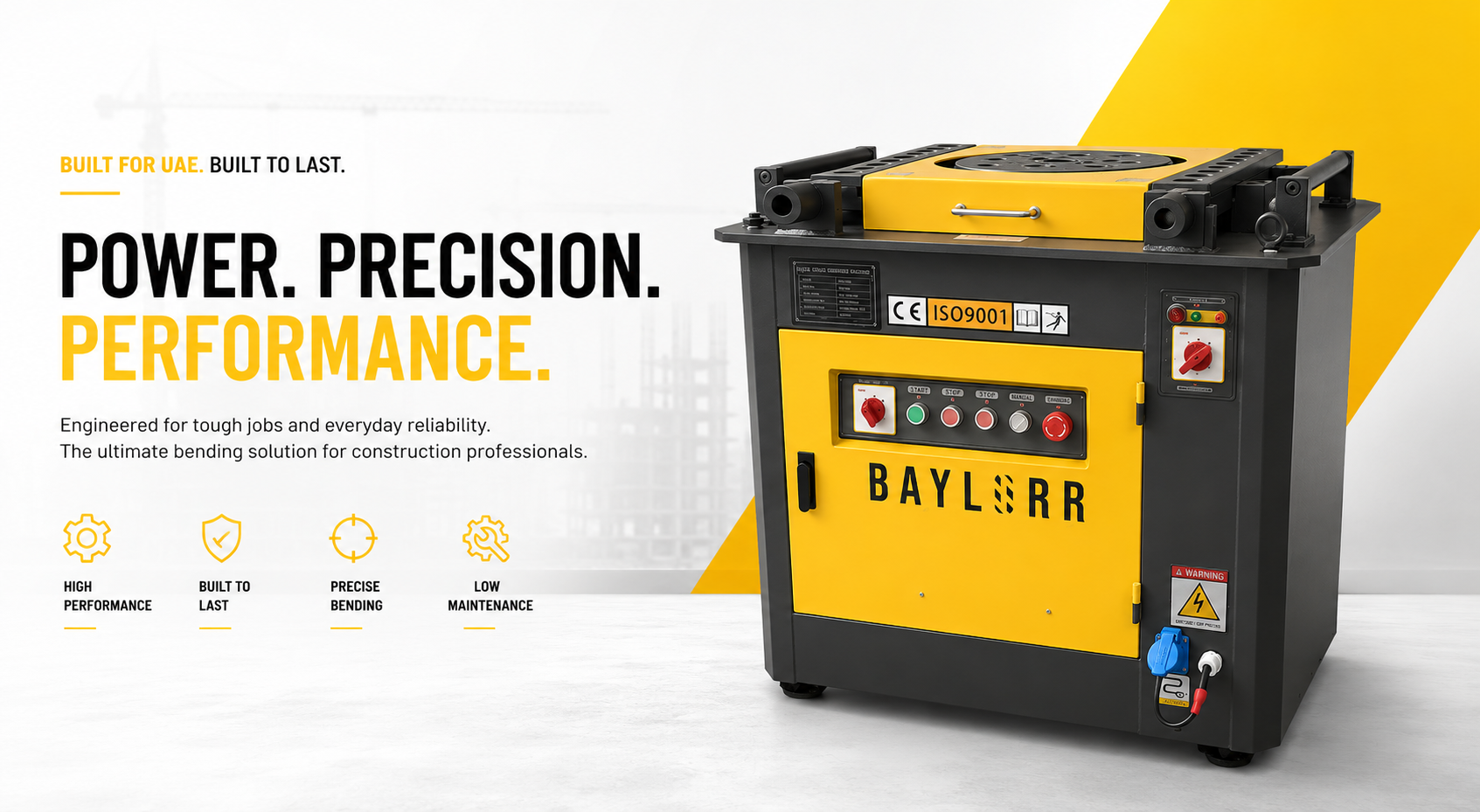

Single-Phase Rebar Bending Machine: Baylorr BAY-RB25
The Baylorr BAY-RB25 is AMACO's single-phase rebar bending machine — and the go-to choice for contractors who need reliable bending capability without a three-phase power connection. Here's what makes it a serious site tool, not just a light-duty option:
| Specification | BAY-RB25 Value |
|---|---|
| Max Rebar Diameter | 25 mm |
| Min Rebar Diameter | 6 mm |
| Input Voltage | 220V / 110V — Single Phase |
| Motor Wattage | 1,600W / 1,700W |
| Bending Speed | 6–7 seconds per cycle |
| Bend Angle Range | 0–180° |
| Net Weight | 91 kg |
| Machine Size | 450 × 500 × 440 mm |
Strengths of the BAY-RB25 on UAE Sites
- Plug into any standard 220V outlet — no three-phase supply, no electrician, no dedicated DB panel required. Runs off a normal site socket or generator.
- Exceptional portability — at 91 kg net weight and 450 × 500 × 440 mm footprint, two workers can reposition it across floors, between zones, or load it onto a pickup without a forklift.
- Full 0–180° bend angle — produces every standard bar shape: stirrups, hooks, links, cranked bars, and U-bars for residential and low-rise commercial reinforcement.
- Compatible with 110V supply — useful on sites using North American or dual-voltage generators, which appear on some UAE infrastructure and temporary site setups.
- Korean-engineered precision — the RB25 is a Korean-type machine built to tighter tolerances than comparable Chinese-manufactured units in this weight class, resulting in more consistent bend angles across repeated cycles.
Limitations of the BAY-RB25
- Maximum 25mm rebar limits its use on structural elements requiring T32 or larger bar — columns, pile caps, and raft foundations typically require three-phase machines.
- At 6–7 seconds per cycle, throughput is lower than high-speed three-phase models — not ideal for high-volume fabrication yards processing hundreds of bars per shift.
- Single-phase power draw of 1,600–1,700W means care is needed with shared circuit loads on early-stage sites with limited electrical capacity.
Three-Phase Rebar Bending Machines: BAY-P42, BAY-P55 & EPRO-46
Three-phase rebar bending machines run on 380V three-phase supply and deliver significantly higher torque and throughput. They are the standard choice for rebar fabrication yards, large construction sites, and any project involving bar sizes above T25.
Baylorr BAY-P42 — The Workhorse
| Specification | BAY-P42 Value |
|---|---|
| Max Round Bar | 42 mm |
| Max Deformed Bar | 36 mm |
| Input Voltage | 380V — Three Phase |
| Motor Power | 3 kW (with brake motor) |
| Motor Speed | 1,440 rpm |
| Bending Speed | 32 bends / min |
| Accessories Included | 5× central shafts, 4× steel sleeves, 1× 2m foot pedal |
The BAY-P42's brake motor is a key specification — the integrated brake stops the bending disc precisely at the programmed angle every cycle, eliminating spring-back variance on repeated bends. At 32 bends per minute, it processes bars at roughly 5× the throughput of the RB25 on identical bar sizes, making it the right tool where volume matters.
Baylorr BAY-P55 — For Oversized Structural Rebar
When projects demand bar diameters beyond T36 — think bridge piers, raft foundations, transfer plates, and heavy pile caps — the BAY-P55 steps up: round bars to 50mm, deformed bars to 42mm, driven by a 5.5 kW (7.5 HP) motor on 380V three-phase. At 5–10 rpm bending speed, it delivers the torque necessary to form oversized high-tensile bars without spring-back or machine strain.
EdilPro EPRO-46 — Italian Engineering for Precision Work
The EdilPro EPRO-46 bends round bars to 46mm and deformed bars to 40mm via a 3 kW, 1,400 rpm three-phase motor on 380V supply, with a 2-metre foot pedal for hands-free bar loading. Italian-engineered for precision fabrication environments where consistent angle accuracy across high-volume runs is critical — specified on contractor workshops producing cage components for repetitive structural elements.
Single Phase vs Three Phase: Direct Comparison for UAE Contractors
| Criteria | BAY-RB25 (Single Phase) | BAY-P42 / P55 / EPRO-46 (Three Phase) |
|---|---|---|
| Power requirement | 220V standard socket | 380V three-phase supply |
| Max deformed bar | 25mm (T25) | 36–42mm (T36–T42) |
| Bending throughput | ~6–7 sec/cycle | 32 bends/min (BAY-P42) |
| Site portability | High — 91kg, manual carry | Low — fixed yard setup |
| Build origin | Korean-manufactured | Chinese / Italian (EPRO-46) |
| Brake motor (stop precision) | Standard motor | ✔ Brake motor (BAY-P42) |
| Best suited for | Villas, low-rise, on-floor use | Fabrication yards, high-rise, infrastructure |
"On a 30-floor tower in Business Bay, we ran the BAY-P42 in the rebar yard and a BAY-RB25 on the upper floors for corrections and last-minute stirrups. That combination is unbeatable."
— Structural Subcontractor, Dubai (AMACO customer)Which Rebar Bending Machine for Which UAE Project?
Choose the BAY-RB25 (Single Phase) When:
- Your site runs on 220V single-phase supply only — no three-phase available or feasible
- You need to move the machine between floors, zones, or multiple sites regularly
- The project involves villa construction, low-rise residential, or compound boundary walls where T10–T20 is the dominant bar size
- You're running a small contracting operation and want one portable, versatile machine that doesn't require an electrical infrastructure investment
- The site is in an early stage and a temporary generator is the only power source
- On-slab corrections: bending bars that have been pre-cut to size but need adjustment during placement
Choose the BAY-P42 / BAY-P55 / EPRO-46 (Three Phase) When:
- Your site or fabrication yard has 380V three-phase supply established
- Projects involve T25–T42 deformed bar for columns, beams, pile caps, or raft foundations
- You're running a dedicated rebar fabrication yard producing bent cages and cut-and-bent kits for multiple sites
- Volume is high: 500+ bars per shift, where the 32 bends/minute throughput of the BAY-P42 is essential
- Precision is critical across repeated cycles — the brake motor on the BAY-P42 ensures consistent angle stops
- Projects are commercial, infrastructure, or industrial scale (warehouses, bridges, utility buildings)
How to Choose the Right Rebar Bending Machine for Your UAE Site
-
1Identify Your Largest Bar Diameter
Pull the reinforcement schedule from your structural drawings and find the thickest deformed bar specified. If it's T25 or below, the BAY-RB25 covers it. T28 and above requires three-phase. T40+ requires the BAY-P55 or EPRO-46.
-
2Check Your Site Power Supply
Confirm whether you have 380V three-phase available. If not, you're on single-phase by default. If three-phase is available, it still makes sense to have a single-phase RB25 as a mobile secondary unit for upper-floor corrections and last-minute bends.
-
3Calculate Your Daily Bending Volume
Estimate how many bars you'll bend per shift. Under 100 bars/day — the RB25 is sufficient. 200–500+ bars/day in a fabrication environment demands the 32 bends/minute throughput of the BAY-P42 or the torque of the BAY-P55 for large diameters.
-
4Factor in Transport and Site Layout
If the bending machine needs to move between floors, between projects, or be transported in a pickup — the RB25's 91 kg and compact dimensions make it the only practical option. Three-phase machines are yard fixtures, not mobile tools.
-
5Evaluate Total Cost of Ownership
Consider the full picture: the RB25's 220V plug-in operation means zero electrical infrastructure setup — no dedicated DB panel, no electrician, no lead time. Three-phase machines require 380V supply to be established first, adding site preparation time. For permanent yard setups, the P42's 32-bend-per-minute throughput accelerates return on investment significantly on high-volume projects.
BAY-RB25 vs BAY-P42: Operational Fit for UAE Contractors
BAY-RB25 (Single Phase): Zero electrical infrastructure setup — plug into any 220V outlet for immediate deployment. Best suited when three-phase supply is unavailable, the site is at an early stage, or the machine needs to move frequently between locations or projects.
BAY-P42 (Three Phase): Requires 380V three-phase supply. Delivers 32 bends/minute throughput that makes it the right engine for high-volume fabrication yards and large-scale UAE projects where bar diameter and output volume demand more power.
The smart play for growing contractors: Run the BAY-RB25 for mobile on-site use and the BAY-P42 in your fabrication yard. Both machines serve different roles — having both eliminates production bottlenecks across your entire operation.
Frequently Asked Questions
Yes. The BAY-RB25 operates on 220V or 110V single-phase supply, making it fully compatible with standard portable generators commonly used on UAE sites before permanent power is established. Ensure your generator is rated at minimum 2.5 kVA to handle the 1,600–1,700W motor draw plus startup surge. A 5 kVA generator is recommended for comfortable headroom when running alongside other site tools.
The BAY-RB25 is Korean-manufactured in the portable ~100kg machine category — engineered for tighter tolerances, more durable components, and consistent angle repeatability in a compact, portable format. Korean-type benders in this class are built for precision and longevity. The engineering quality, single-phase voltage flexibility, and portability place it in a different category from larger three-phase yard machines — built for a different job, not a lesser one.
The BAY-P42 bends round bars up to 42mm and deformed (high-yield) bars up to 36mm. This covers the vast majority of rebar sizes used in UAE residential and commercial construction — T10 through T32 deformed bar covers most column, beam, slab, and footing reinforcement requirements. For T40 or T42 deformed bar on heavy infrastructure, step up to the BAY-P55.
Yes. AMACO supplies the full range of Baylorr and EdilPro rebar bending machines — including the BAY-RB25, BAY-P42, BAY-P55, and EPRO-46 — to contractors and fabrication yards in Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. Contact us via WhatsApp or phone for current pricing, delivery lead times, and technical advice on the right machine for your project.
The BAY-P42 ships complete with five central shafts, four steel sleeves, and a 2-metre foot pedal. The foot pedal is particularly valuable for productive bending — it allows the operator to hold and position the bar with both hands while activating the bending cycle with the foot, significantly improving both output speed and operator safety on busy rebar yards.
The Bottom Line
For UAE contractors, the choice between single-phase and three-phase rebar bending machines comes down to four factors: the bar sizes your project specifies, the power available on your site, how often the machine needs to move, and your daily bending volume.
The BAY-RB25 is the right tool for portability, single-phase operation, and villa-to-low-rise project scale — Korean-built for precision and durability in a compact, mobile format. The BAY-P42 is the right tool for volume, larger bar diameters, and fixed fabrication environments. The BAY-P55 handles the heaviest structural work, and the EPRO-46 brings Italian-engineered precision to high-accuracy fabrication shops.
