Baylorr BAY-IC40 Interlock Cutter

Product Description

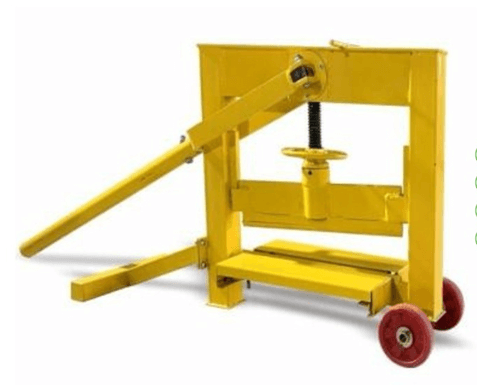

The Baylorr IC40 interlock cutter is a manual block and paver cutter with a maximum cutting width of 400mm and a cutting height range of 5–10cm, in a compact 23 × 67 × 60 cm footprint. It cuts by hydraulic-mechanical splitting action rather than by abrasive blade, so it produces no dust, no water slurry, no noise and no power requirement of any kind. That is the whole case for a manual interlock cutter. A block cutting machine with a diamond blade needs three-phase power or a generator, a water supply for wet cutting, and generates slurry that has to be managed on a finished surface. The IC40 needs an operator and nothing else, which is why paving crews keep one on the laying face rather than walking cut blocks back to a saw station. On a paving job the cutting is continuous and incremental — every edge, every curve, every obstruction needs a block trimmed — and a splitter at the laying point is far quicker in practice than a saw twenty metres away. Landscaping and paving contractors use the IC40 to trim interlock blocks around edges and kerb lines, curved paths, manhole covers, drainage gullies, bollards, tree pits and service covers — anywhere a full block cannot be laid. It also cuts clay bricks and concrete paving slabs within the 5–10cm height range. Typical work includes municipal footpaths and walkways, residential driveways and compound paving, landscaping and hardscaping projects, car parks and public realm works across the UAE. The 400mm maximum cutting width covers standard interlock block and paver sizes used in the region. At this size and weight the cutter is carried and repositioned by one person as the laying face advances, which is how it is actually used on site — not set up once and left. For harder or thicker material, the Baylorr BAY-BC600 block cutting machine is a 600mm wet cutter with a 200mm cutting depth and a 4 kW motor, suited to concrete blocks, kerbstones and thicker slabs where the manual splitter cannot reach. Paving work also commonly pairs with a Baylorr plate compactor for sub-base and bedding compaction. AMACO supplies the IC40 across the UAE from our workshop at Al Jurf Industrial Area 2, Ajman, with delivery to Dubai, Sharjah, Abu Dhabi and the Northern Emirates. As a manual machine the maintenance requirement is minimal, but blade and mechanism service is available through our in-house workshop along with spare parts. Contact AMACO on WhatsApp or by phone for interlock cutter pricing and availability.
